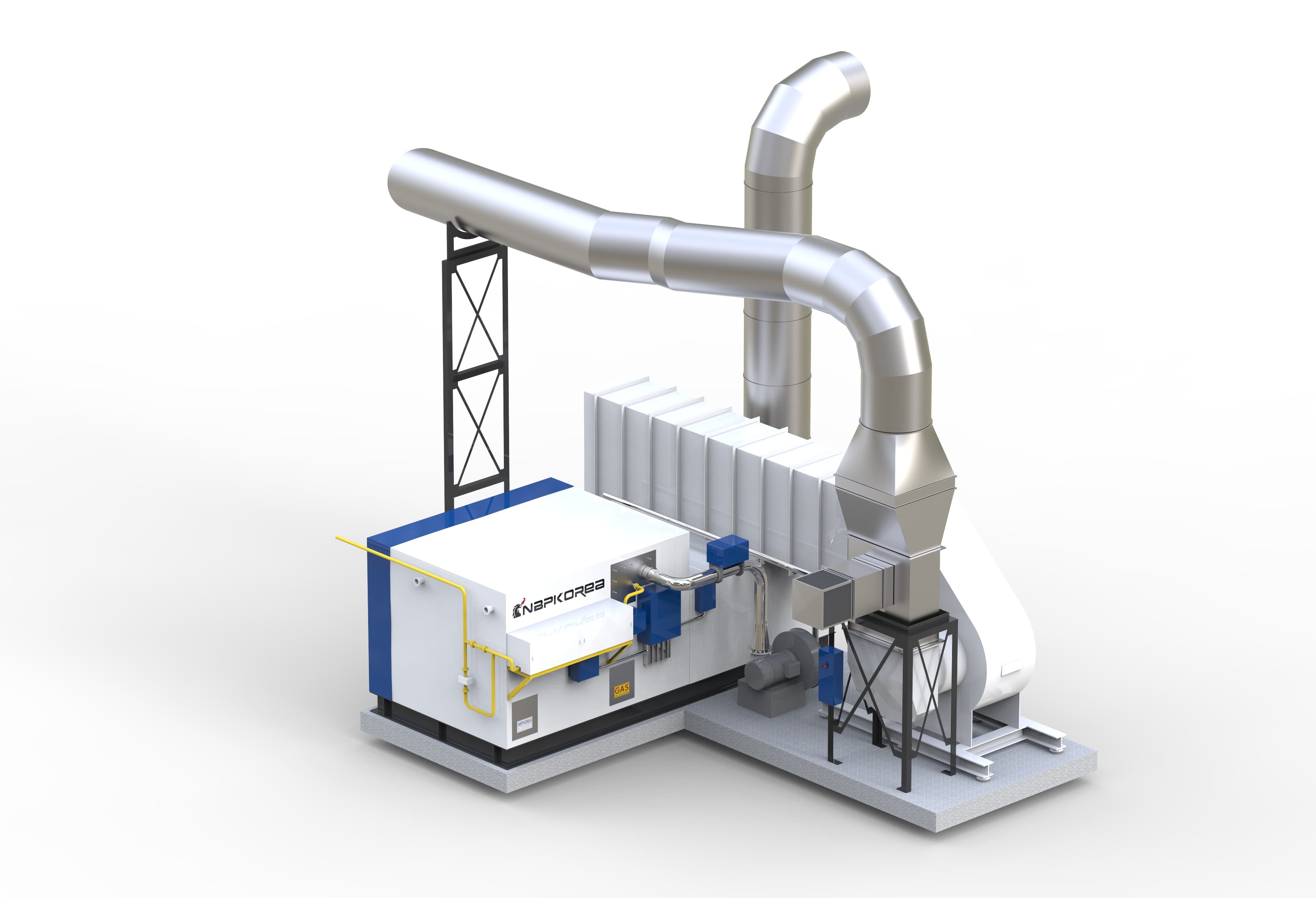

Catalytic Thermal Oxidizer (CTO)
CTO uses a catalyst to combust (contact oxidation) and render harmless odorous substances contained in exhaust gas — chemically the same as ordinary combustion decomposition. The catalytic material acts as a facilitator, participating in combustion to accelerate the reaction, enabling a new combustion technology that greatly reduces nitrogen oxide (NOx) generation from low-temperature, low-concentration combustion while significantly improving energy savings.
Catalytic combustion oxidation at normal temperatures of 250–450°C achieves combustion efficiency of 98% or more for odorous substances, with a very high treatment efficiency of about 99% for odor concentration. It is also environmentally friendly with few secondary pollution factors.
Applications

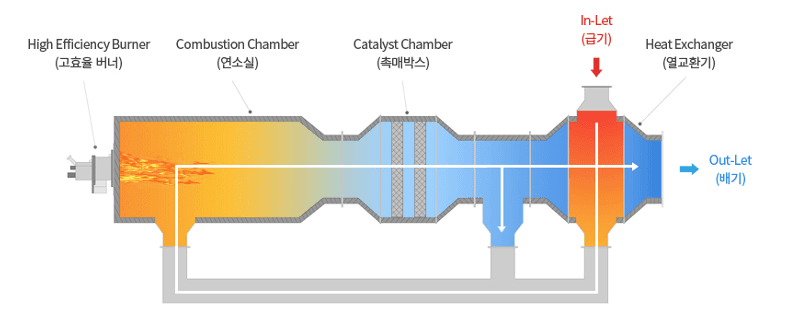

Mechanism
Heat Recovery (Heat Recovery)
Product Features
Specifications
Click a row to select a model
| MODEL | Airflow (Nm³/min) | Heat Input (Kcal/hr) | Power (kW) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| NKCTO-050 | 50 | 400,000 | 22 | 3,400 | 1,860 | 2,130 |
| NKCTO-100 | 100 | 550,000 | 30 | 4,000 | 1,860 | 2,130 |
※ Specifications are subject to change without notice for improvement.
Considering NK-CTO?
We will propose the optimal specifications for your site conditions.
