Direct Thermal Oxidizer (TO)

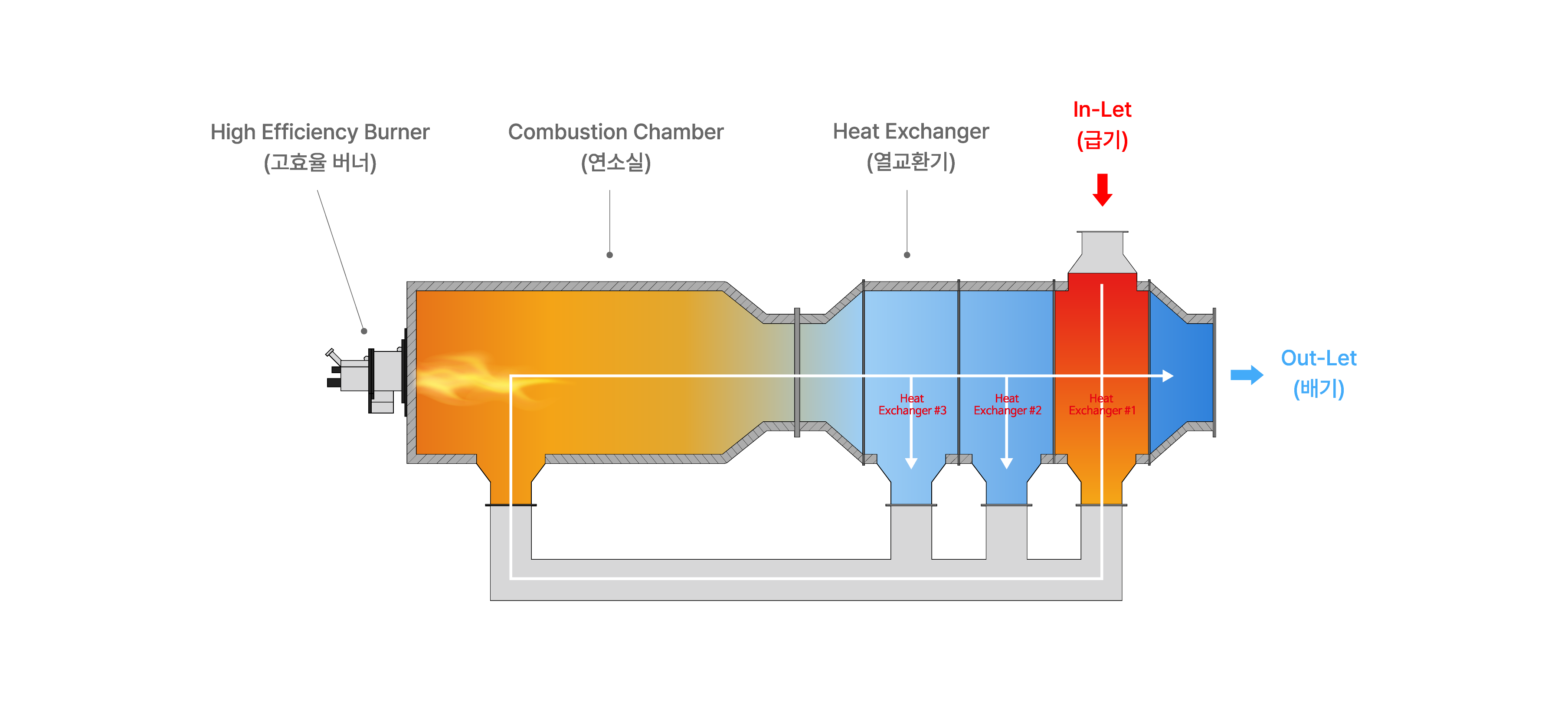

TO is a system that introduces mixed flue gas and organic solvent gas (VOCs), benzene, sulfur dioxide, and other substances into a combustion chamber, where odorous substances are directly contacted with high-temperature flames to decompose and reduce them. At high temperatures above the ignition point (700~900°C), with a residence time of 1~1.5 seconds, the three conditions for highest treatment efficiency — high Temperature, Time, and Turbulence (3T conditions) — are all satisfied for effective treatment.
With a maximum treatment efficiency of over 99%, this technology applies a pre-heat heat exchanger to utilize recovered heat and increase recovery rates, while its compact structure saves installation costs and space.
Applications

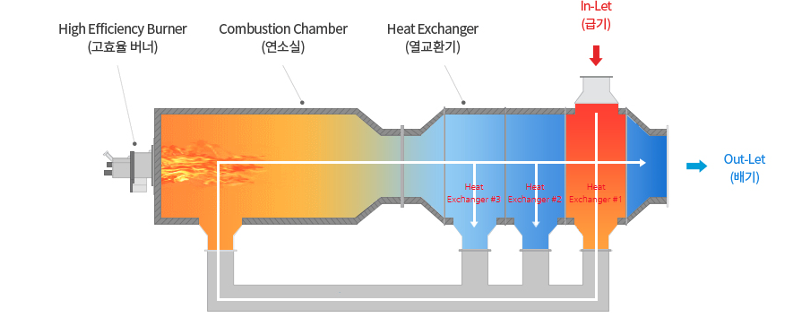

Flow Chart
Product Features
Specifications
Click a row to select a model
| MODEL | Airflow (Nm³/min) | Heat Input (Kcal/hr) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|
| NKTO-050 | 50 | 450,000 | 4,060 | 1,100 | 1,500 |
| NKTO-075 | 75 | 700,000 | 4,060 | 1,100 | 1,500 |
| NKTO-100 | 100 | 900,000 | 4,340 | 1,100 | 1,500 |
| NKTO-150 | 150 | 1,250,000 | 7,200 | 1,500 | 1,500 |
| NKTO-200 | 200 | 1,800,000 | 7,200 | 2,000 | 1,500 |
| NKTO-300 | 300 | 3,000,000 | 7,200 | 3,000 | 1,500 |
※ Specifications are subject to change without notice for improvement.
