Regenerative Catalytic Oxidizer (RCO)
RCO is a new combustion technology that adds a catalyst to a direct combustion incinerator using regenerative media as a heat recovery medium. This technology uses a burner for initial startup and heating, then passes organic solvents and organic odors through a catalyst bed capable of low-temperature oxidation, treating them at low temperatures (250~450°C). This greatly reduces nitrogen oxide (NOx) generation from low-temperature, low-concentration combustion while recovering combustion heat through regenerative media to prevent air pollution and using waste heat as a heat source for production processes, significantly enhancing energy savings.
With a maximum treatment efficiency of over 99% and a maximum heat recovery efficiency of 95%, this technology uses recovered heat and applies catalysts for low-temperature oxidation treatment, resulting in very high energy savings and applicability to various industrial processes.
Applications

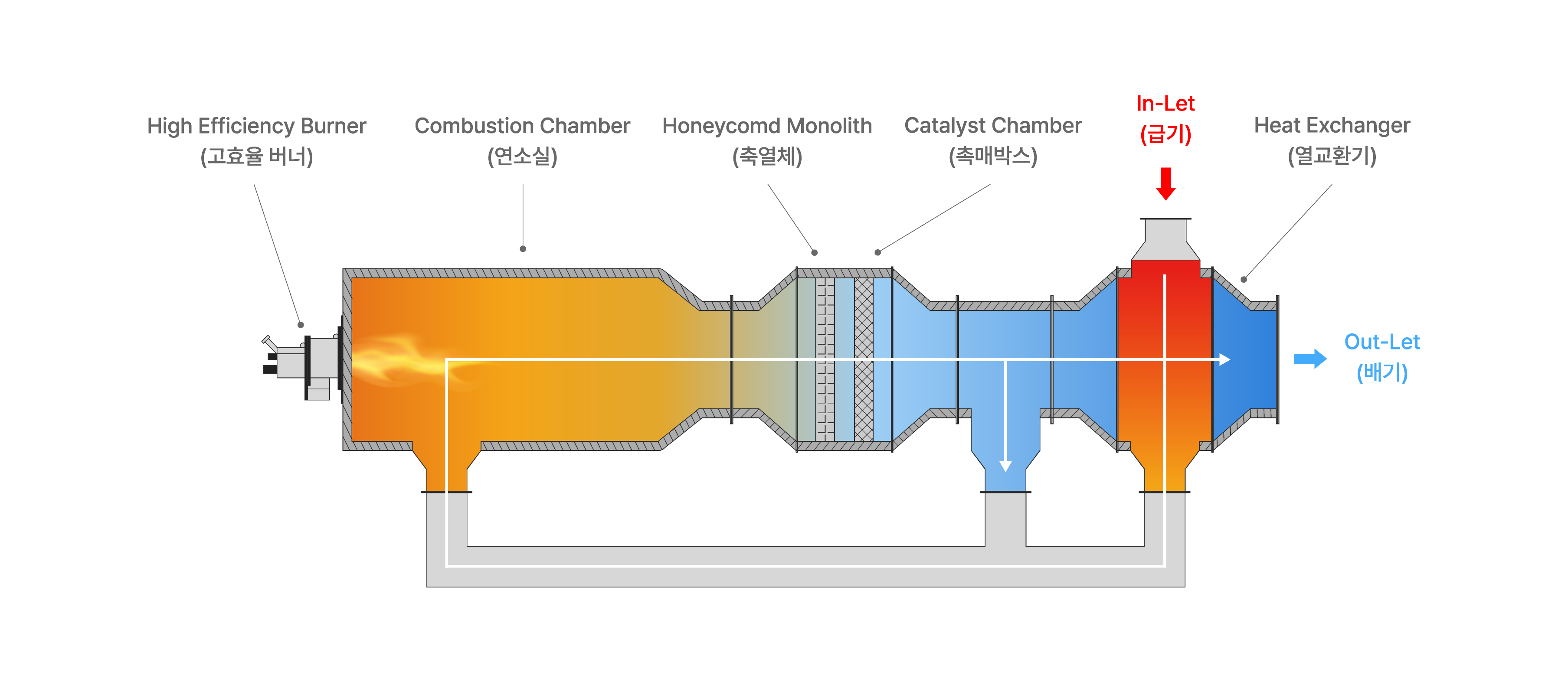

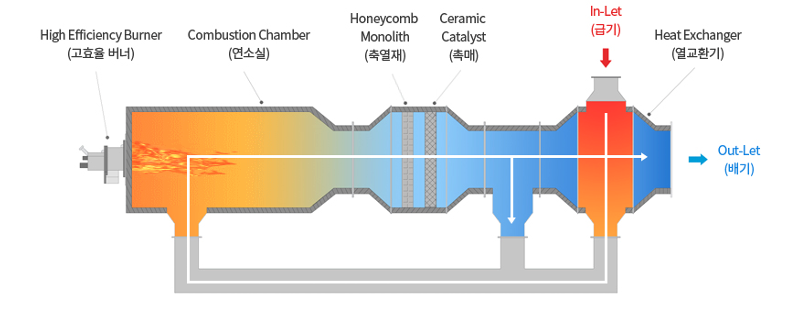

Mechanism
Heat Recovery (Catalyst + Regenerator Hybrid)
Product Features
Specifications
Click a row to select a model
| MODEL | Airflow (Nm³/min) | Heat Input (Kcal/hr) | Power (kW) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| NKRCO-100 | 100 | 550,000 | 22 | 3,400 | 1,860 | 3,540 |
| NKRCO-150 | 150 | 550,000 | 37 | 3,400 | 1,860 | 3,540 |
| NKRCO-200 | 200 | 870,000 | 45 | 4,000 | 2,400 | 3,540 |
| NKRCO-250 | 250 | 870,000 | 55 | 4,000 | 2,400 | 3,540 |
| NKRCO-300 | 300 | 870,000 | 75 | 4,500 | 2,400 | 3,540 |
| NKRCO-400 | 400 | 1,200,000 | 90 | 4,700 | 2,540 | 3,540 |
※ Specifications are subject to change without notice for improvement.
Considering NK-RCO?
We will propose the optimal specifications for your site conditions.
