Cylindrical Metal Burner

Industrial Burner · Cylindrical Metal Burner

Cylindrical Metal Burner
(Cylindrical Metal Burner)

NBPKOREA Metal Burner is a portable industrial burner that can be directly deployed to job sites for immediate operation without fixed equipment. It is optimized for temporary and mobile heating needs such as shipyard block interior heating, construction site concrete curing, and ship tank drying.

Based on MIDCO International (USA) two-stage combustion technology, it minimizes NOx and CO emissions, and both LNG and LPG gas can be used without nozzle replacement. With independent operation configuration, it starts immediately with only site gas supply.

PortableImmediate Field DeploymentIndependent OperationMulti-Fuel Ready

Applications

Shipyard Block Interior Heating Construction Concrete Curing Temporary Heating Equipment Ship Tank Interior Drying Field Paint Pre-Treatment Steel Mill Temporary Heating Tunnel Construction Sites Agricultural Greenhouse Heating Portable Dryers Special Field Heat Sources Disaster Recovery Sites Other Portable Heating Needs

Key Features

Immediate Field DeploymentNo separate factory equipment needed — starts immediately with site gas connection

Independent OperationBuilt-in control panel — fully independent operation as a standalone package

Multi-Fuel ReadyBoth LNG and LPG usable without nozzle replacement

Safety SystemOverheat protection and flame detection auto-shutoff safety devices included

Product Features

Portable package design — rapid field deployment and withdrawal

Independent operation — runs with only site gas supply, no factory equipment needed

Minimized NO2 and CO emissions — compliant with ANSI Z83.4 / Z83.18

Two-stage combustion method minimizes NOx even at maximum firing

Both LNG and LPG usable without nozzle replacement

30-step precision flame control — adapts to field temperature conditions

Compact enough for confined spaces such as shipyard block interiors

Flame stability — two-stage combustion maintains flame length under 25cm

PLC or manual control mode selectable

Overheat protection and flame detection safety devices included as standard

MIDCO International (USA) technical partnership — globally proven combustion system

Custom fabrication, installation, and after-service one-stop support

Specifications

Metal Burners are custom-designed and fabricated based on field deployment purpose, space conditions, and required heat output.
Made-to-order — specific capacity and dimensions are finalized through engineer consultation.

FuelLNG / LPG

ControlPLC or Manual

Emission StandardANSI Z83.4 / Z83.18

Operation ModeStandalone Package

※ Custom-designed according to site conditions and required specifications. Optimal specifications proposed after pre-site survey.

Application Examples

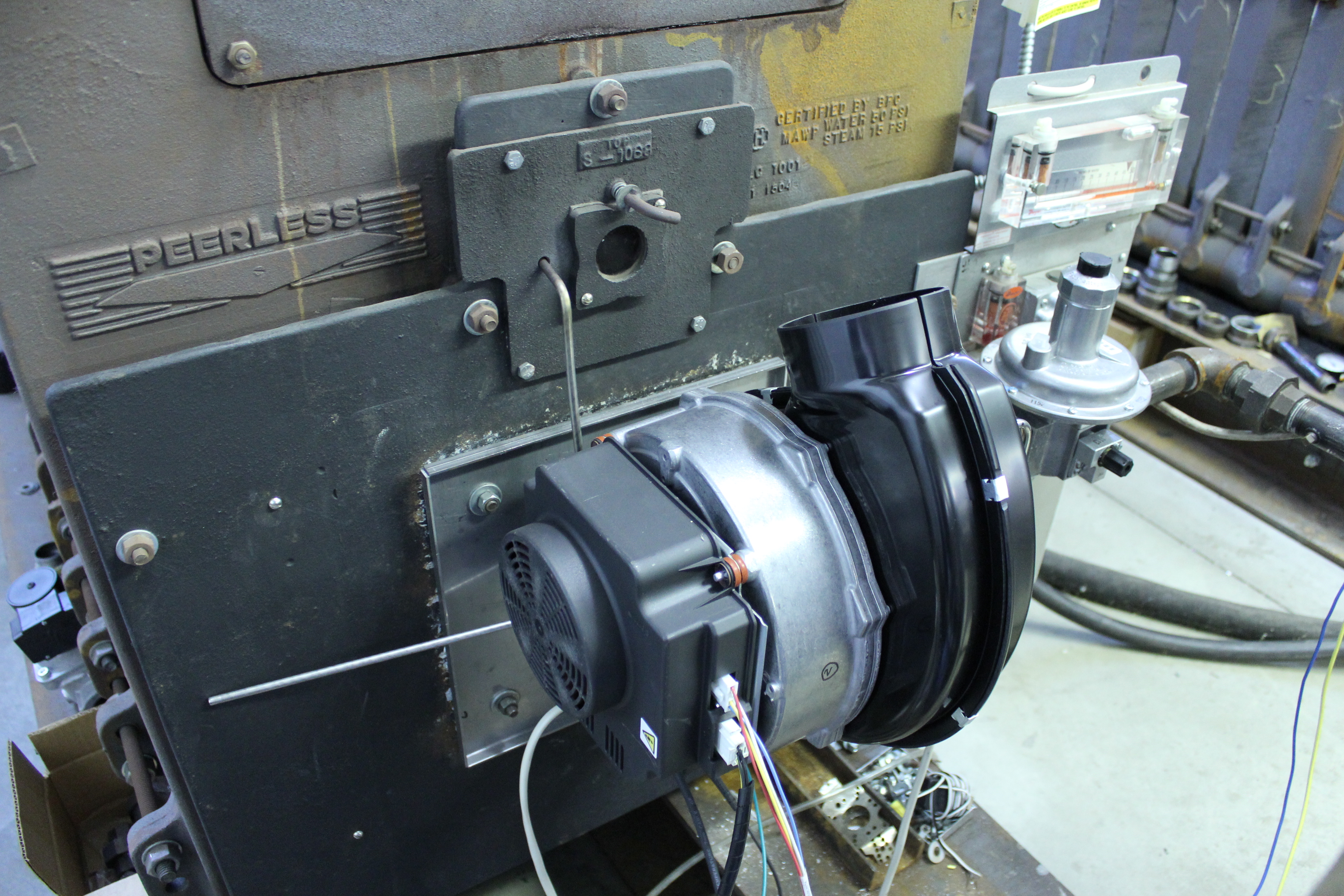

Cylindrical Metal Burner Application Example 1

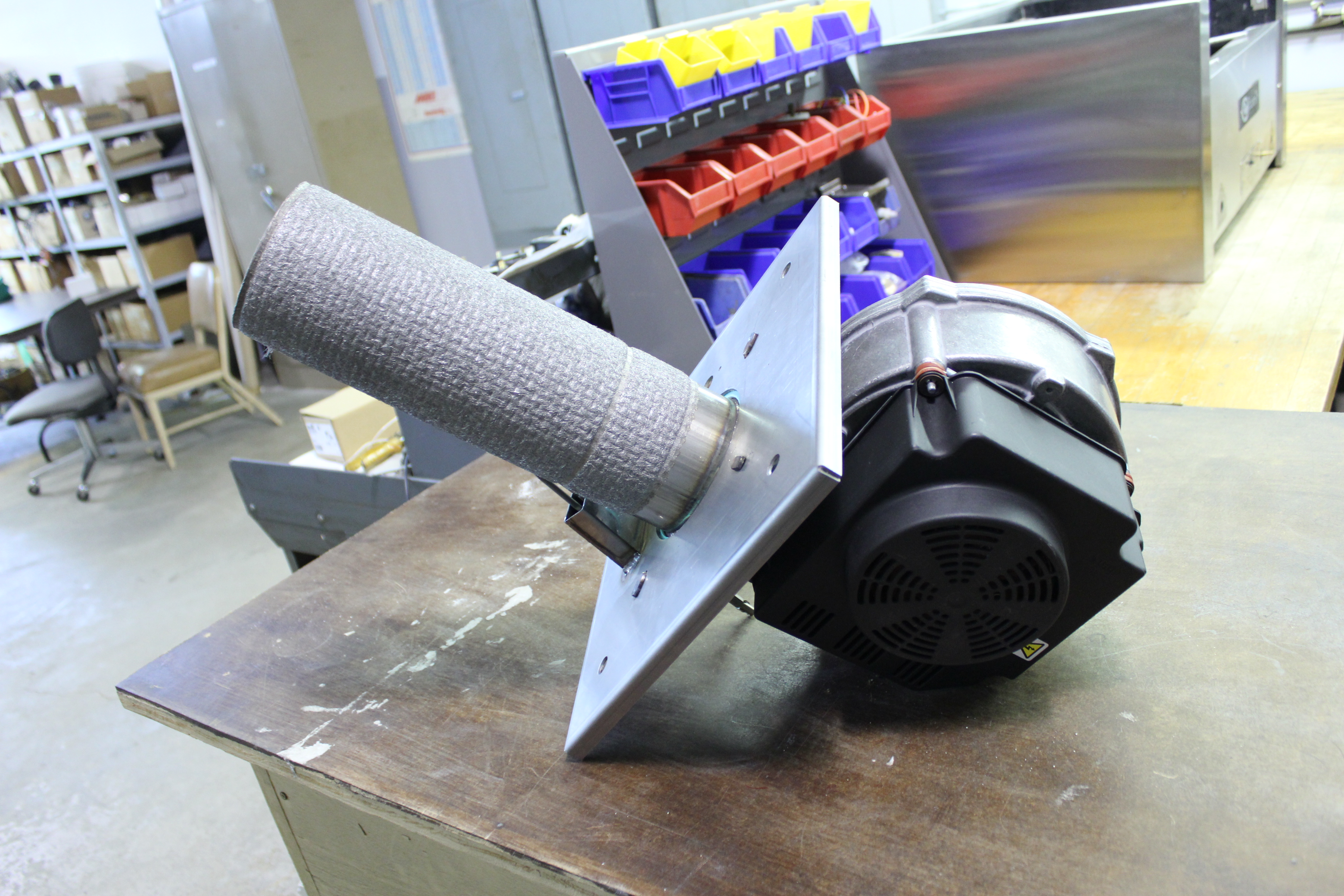

Cylindrical Metal Burner Application Example 2
