Duct Burner
(Duct Burner)

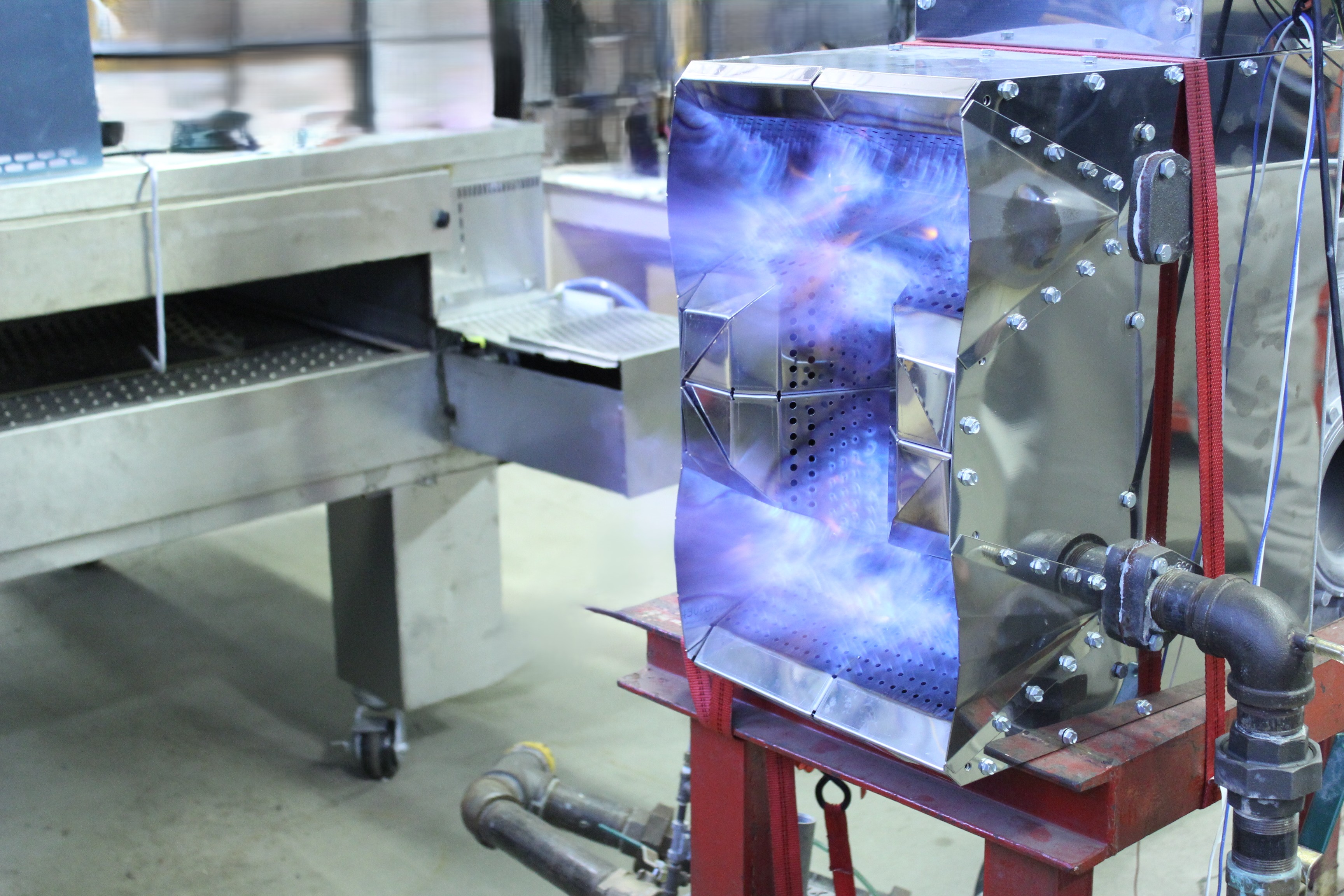

NBPKOREA Duct Burner generates infrared radiant heat from a surface combustion element made of heat-resistant metal fiber. Based on a technical partnership with MIDCO International (USA), it achieves low NOx and CO emission design compliant with ANSI Z83.4 / Z83.18 standards.
The NBP series lineup ranges from compact (0.5FT) to large (6FT), featuring a two-stage combustion method and 30-step precision turndown control for stable duct temperature management. Both LNG and LPG gas can be used without nozzle replacement.
Applications
Combustion Principle — Two-Stage Surface Combustion
Flame length maintained under 25cm / 30-step precision turndown control / Differential pressure 0.05"~1.4" W.C. wide-range operation
Product Features
Size Lineup
Custom selection from compact 0.5FT to large 6FT (1.5M Kcal/h) to match field duct dimensions
Specifications
Click a row to select a model
| MODEL | Size | Output (kW) | Combustion Capacity (Kcal/h) | Passing Pressure (mmAq) | Fuel |
|---|---|---|---|---|---|

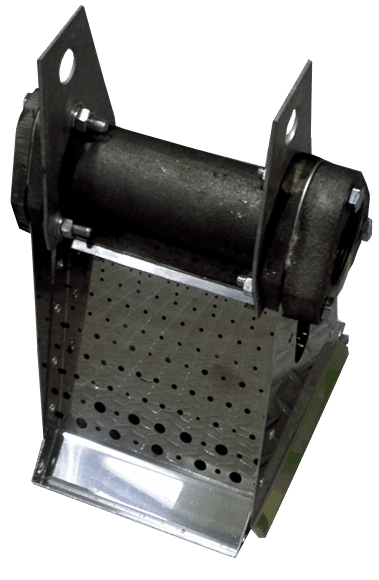

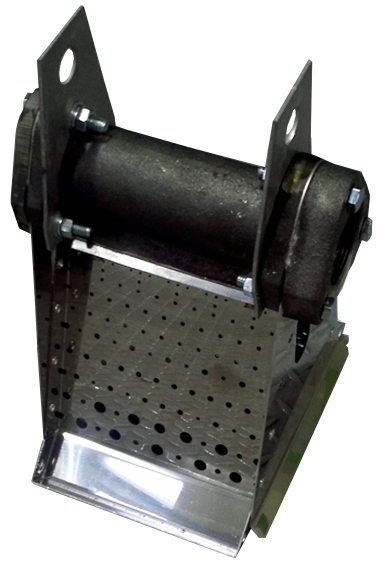

| NBP-050 | 0.5FT | 147 | 125,000 | 35 | LNG / LPG |

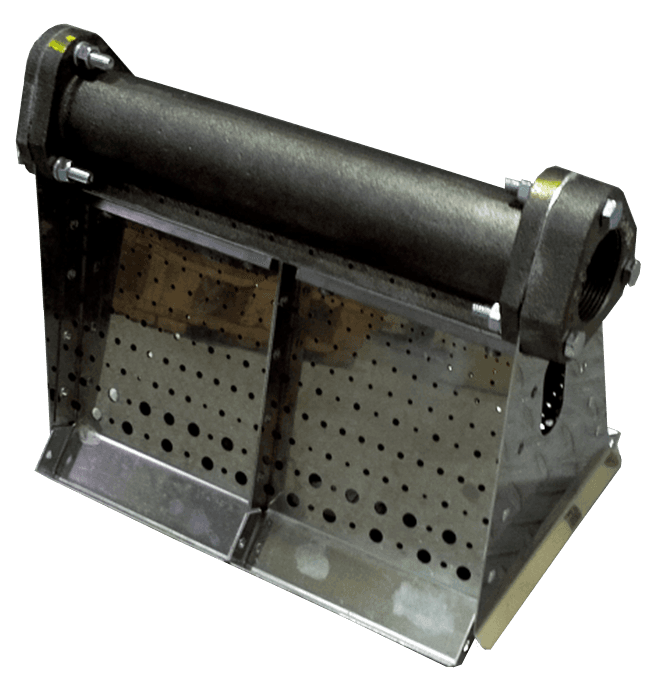

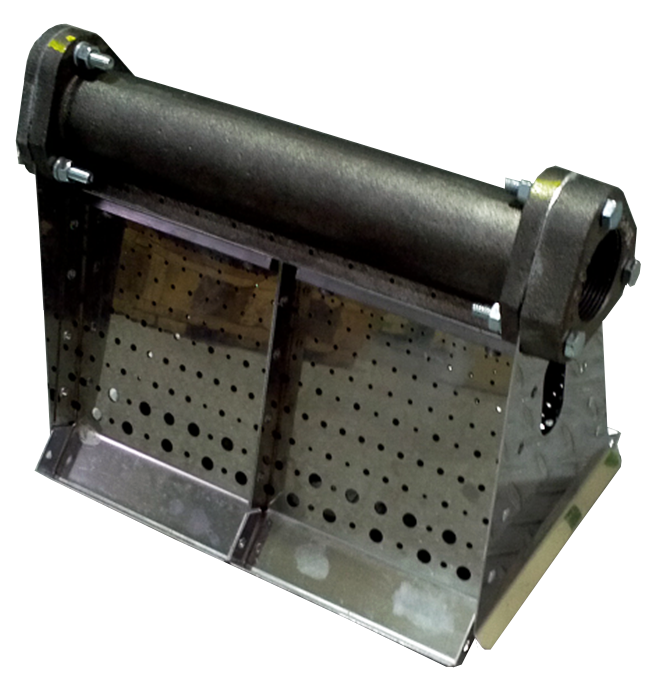

| NBP-100 | 1FT | 293 | 250,000 | 35 | LNG / LPG |

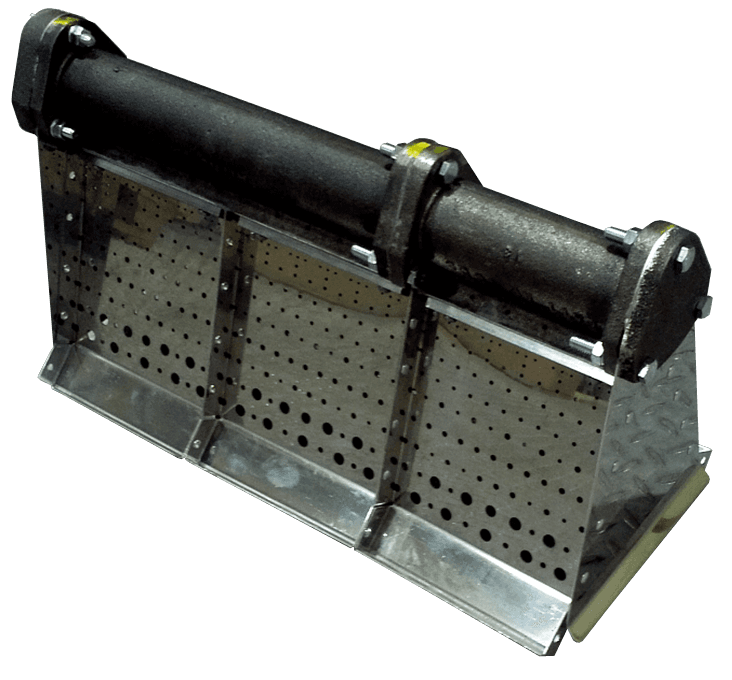

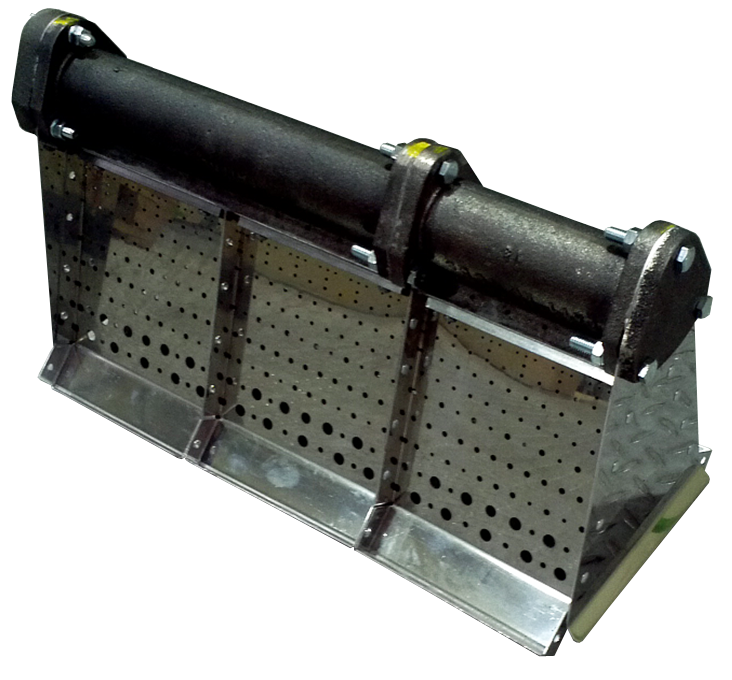

| NBP-150 | 1.5FT | 440 | 375,000 | 35 | LNG / LPG |
| NBP-200 | 2FT | 586 | 500,000 | 35 | LNG / LPG |
| NBP-250 | 2.5FT | 733 | 625,000 | 35 | LNG / LPG |

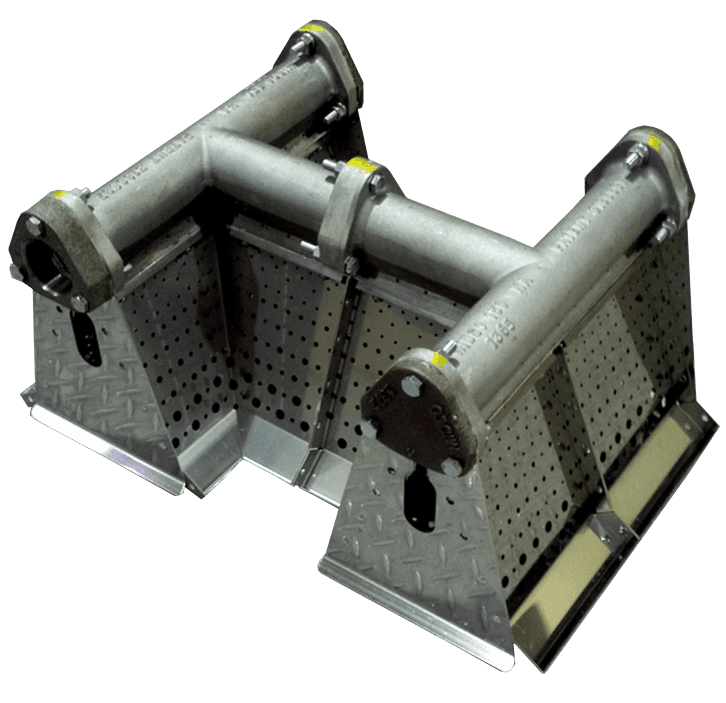

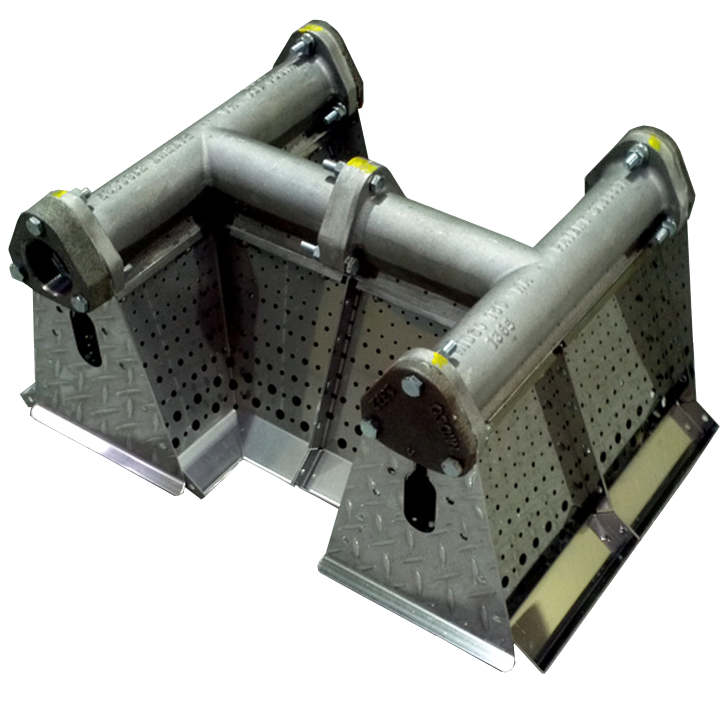

| NBP-300 | 3FT | 879 | 750,000 | 35 | LNG / LPG |
| NBP-400 | 4FT | 1,172 | 1,000,000 | 35 | LNG / LPG |
| NBP-450 | 4.5FT | 1,319 | 1,125,000 | 35 | LNG / LPG |

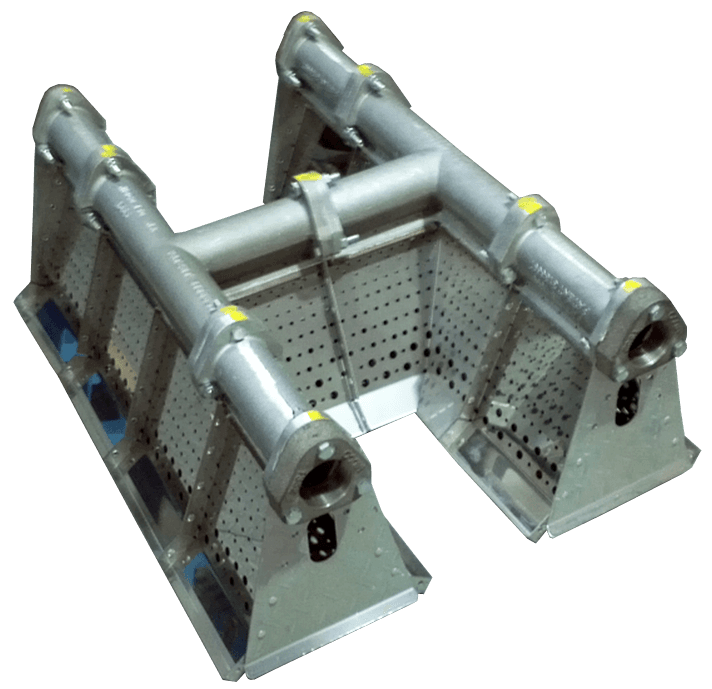

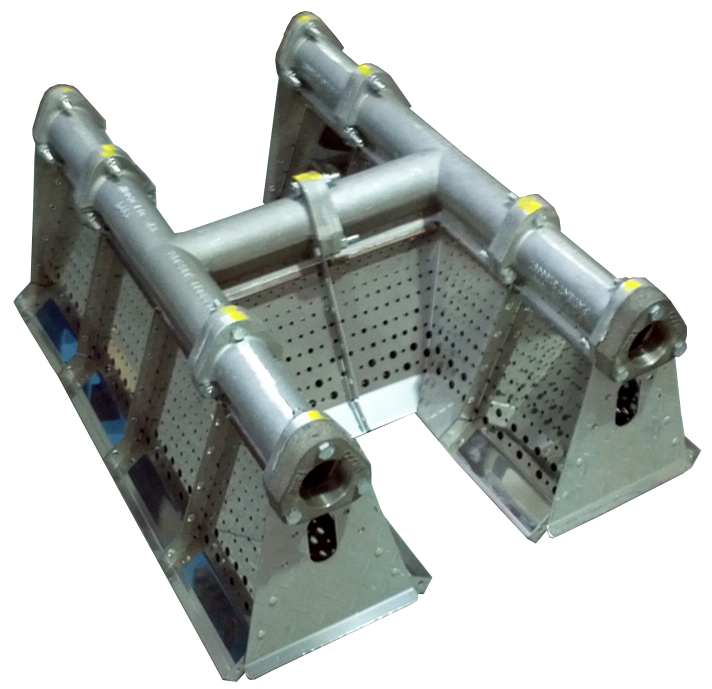

| NBP-500 | 5FT | 1,466 | 1,250,000 | 50 | LNG / LPG |
| NBP-600 | 6FT | 1,759 | 1,500,000 | 50 | LNG / LPG |
※ Specifications are subject to change without notice for improvement.
Technology Partnership

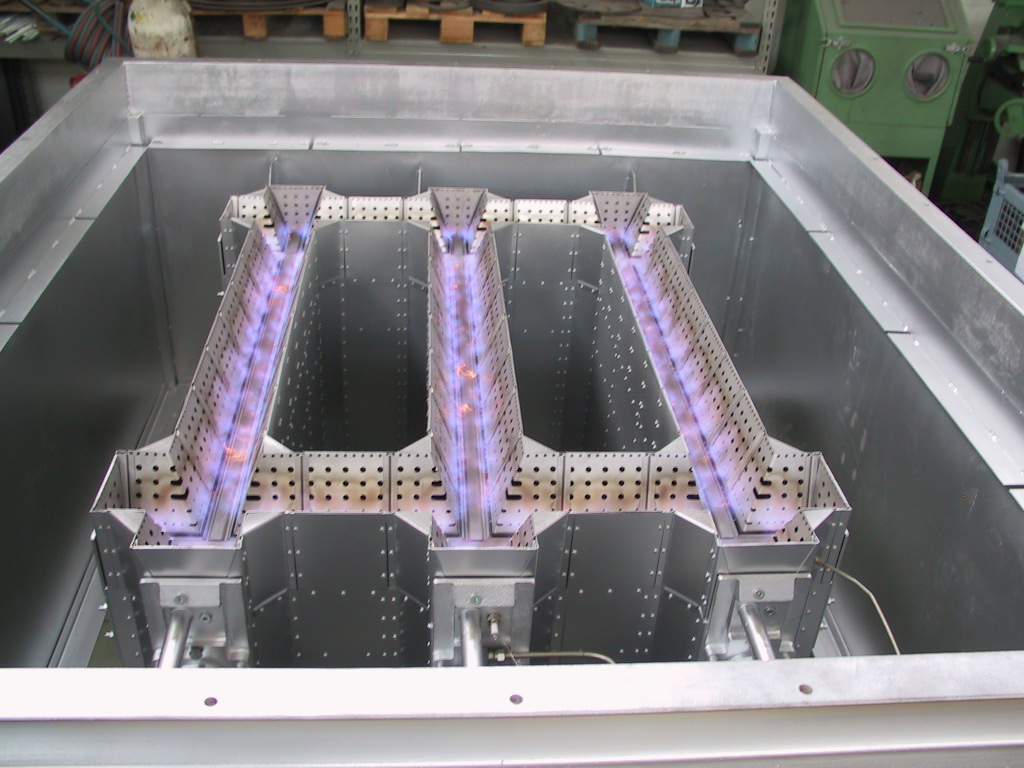

Application Examples
Considering the Duct Burner?
We will propose the optimal specifications for your site conditions.
