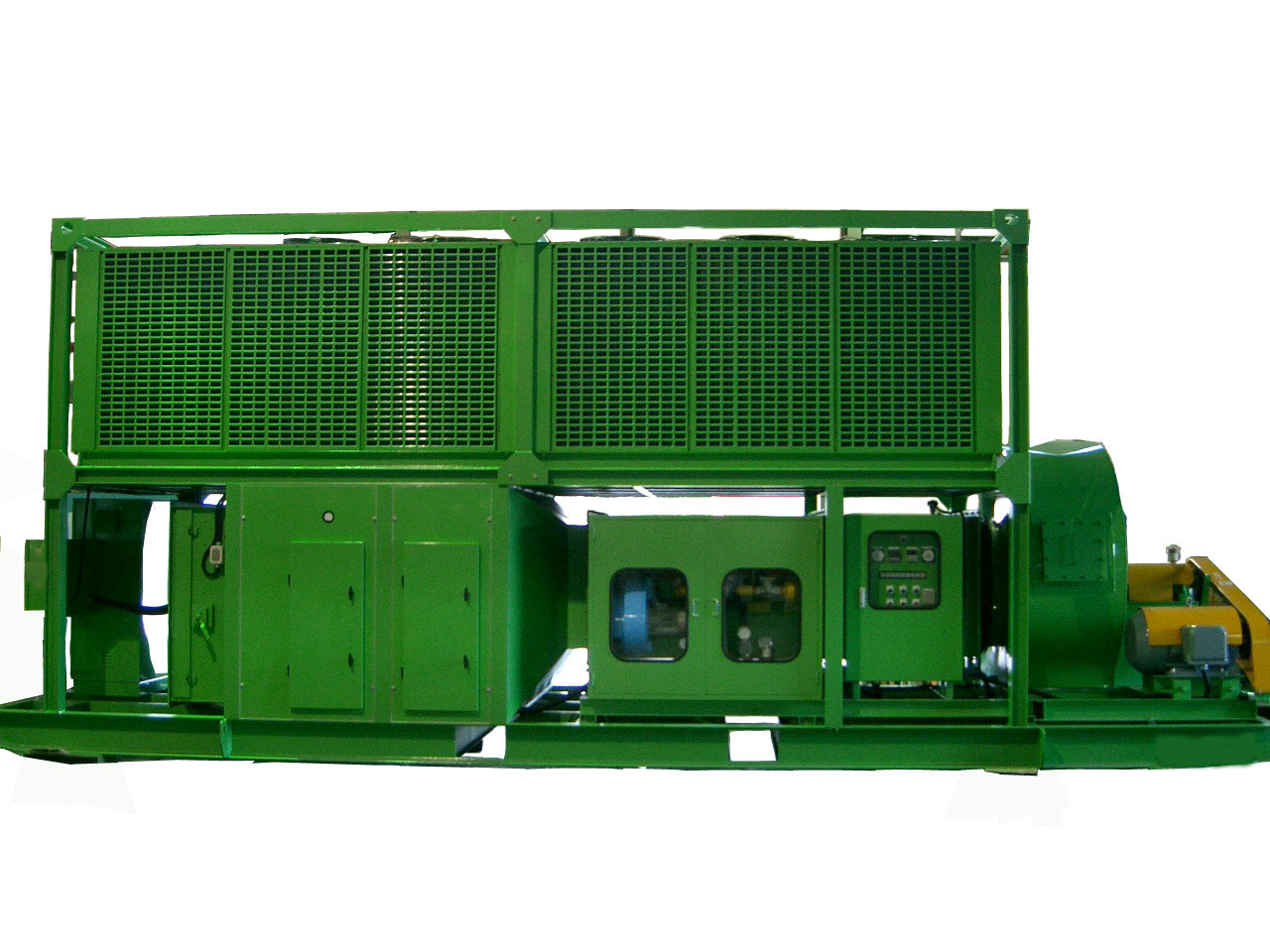

Hybrid Dehumidifier
A hybrid dehumidification system that combines a cooling dehumidifier with a direct-fired gas heater, achieving reduced equipment investment, energy savings, and lower operating costs. It removes moisture from the air by cooling the supply air below its dew point temperature, preventing discomfort from humidity and productivity loss due to product quality degradation.
Direct-fired operation reduces fuel costs by 30% with eco-friendly complete combustion, and enables year-round hybrid operation. Equipped with proven Midco Gas Burners for safety, it is applied across high-humidity environments including ship block factories, paint workshops, clean rooms, and storage warehouses.
Applications
Dehumidifier System Flow
Outdoor unit (heat dissipation) mounted — Cooling + Heating year-round hybrid operation
Product Features
Specifications
Click a row to select a model
| MODEL | Airflow (m³/h) | Cooling Cap. (Kcal/h) | Heating Cap. (Kcal/h) | Fan Motor (kW) | Length (mm) | Width (mm) | Height (mm) | Weight (ton) |
|---|---|---|---|---|---|---|---|---|
| NK-MDGH-8500 | 8,500 | 84,000 | 200,000 | 15 | 4,550 | 2,350 | 3,500 | 5 |
| NK-MDGH-12000 | 12,000 | 140,000 | 400,000 | 18.5 | 4,650 | 3,200 | 3,550 | 7 |
| NK-MDGH-15000 | 15,000 | 168,000 | 400,000 | 22 | 4,750 | 3,250 | 3,550 | 9 |
| NK-MDGH-30000 | 30,000 | 336,000 | 1,000,000 | 45 | 7,860 | 3,500 | 3,850 | 11 |
※ Specifications are subject to change without notice for improvement.
